Used as position or end of travel detector. Valve configurations include pneumatic reset types which can be used in conjunction with pushbuttons or other control devices to manually or automatically reset valve. A double plunger is also available which can be used on machine carriages to reverse direction of travel. Operating force is 7.9 Lbs. and plunger travel is approx. 3/16 inch (5 mm).
Operating pressure range 0-145 PSI, Actuation force at 90 PSI, is approx. 7.9 Lbs.
For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.
Typical valve body dimensions are 2.5" L (3 way). 3.15" L (4 way) x 1.375" H x 0.75" W. Add 1" to L dim for pneumatic reset types. Through body mounting holes 3/16" dia.
Plunger diameter is 0.25" and extends .669" from valve body. Plunger travel Is 1875" ± 0.04"
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714
Plunger Operated, Body Mount
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. | Body Mounting Hole |
|---|---|---|---|---|---|
| 75022-21-21 |  3 Way Normally Closed Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | 3/16 in. |
| 75022-21-22 |  3 Way Normally Closed Pneumatic Reset | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | 3/16 in. |

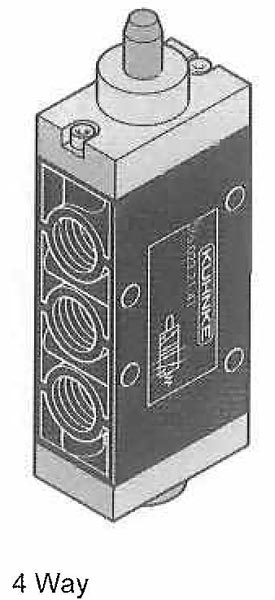

| 75023-21-41 |  4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
| 75023-21-10 |  4 Way Plunger on Both Ends (Maintained) | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
| 75023-21-42 |  4 Way Pneumatic Reset | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
| 76022-21-21 | 3 Way Normally Closed Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S | 3/16 in. |
| 76022-21-22 | 3 Way Normally Closed Pneumatic Reset | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S | 3/16 in. |
| 76023-21-41 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
| 76023-21-10 | 4 Way Plunger on Both Ends (Maintained) | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
| 76023-21-42 | 4 Way Pneumatic Reset | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | 3/16 in. |
