Timing Using a Manual Push-Pull ValveItem # item-1846

Pushing in knob starts air flowing to device and to timer. When the timer reaches set time, it sends a signal to the reset port of the push-pull valve shutting down the air output. To stop the process, pull the knob out, shutting off the air and resetting the timer.

Any on delay timer (Consider length of time required and mounting preference).

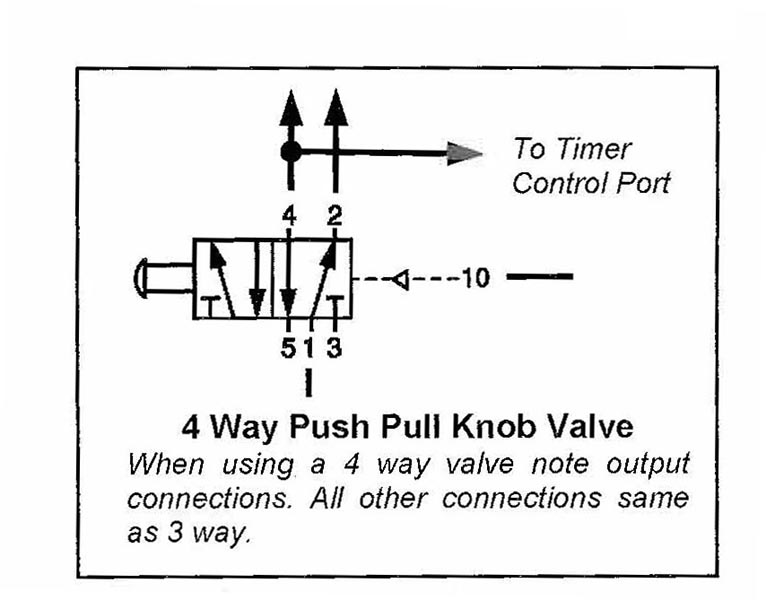

Push-Pull Valve- Cat. nos. 75022-27-22 (3way, 1/8 ports), 75023-27-42 (4 way, 1/8) or75043-27-42 (4 way, 1/4).
Alternative-Lever operated valve, pneumatic reset, contact factory for information.
