Can be used as a door closed switch, material position detector or an end of travel detector. A double plunger is available which can be used on machine carriages to reverse direction of travel. Air pilot assist reduces actuation force to 1.8 lbs., minimum supply pressure 35 PSI.
Operating pressure range 35-145 PSI Actuation force at 90 PSI. is approx. 1.8 Lbs.
Approximate valve body dimensions for 1/8 ported valves are 3.5" L (4 way body no. 2S) x 1.375" H x 0.75" W. For body no. 10P- 4.75" L x 2" H x 1"W. Approximate dimensions for 1/4 ported valves are 4.75" L x 2" H x 1" W. Mounting hole 5/8" diameter.
Plunger diameter 5/32" and extends 0.625" from valve body. Plunger travel is 0.125".
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714

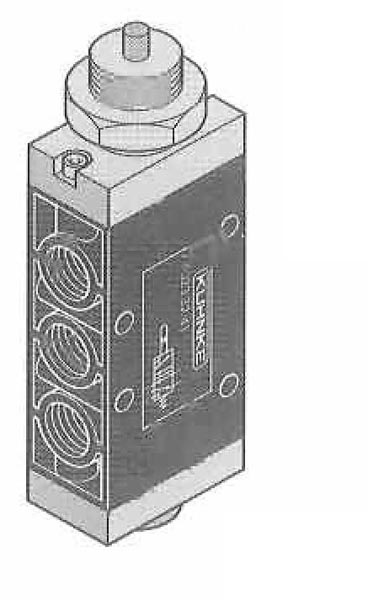

Plunger Operated, Air Pilot Assist, Nose Mount
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. | Body Mounting Hole |
|---|---|---|---|---|---|
| 75022-32-21 |  3 Way Normally Closed Spring Return | 1/8 NPT (USA Std.) | 0.236 in. 6 mm | 1S | 5/8 in. |
| 75046-60-21 | 3 Way Normally Closed Spring Return | 1/4 NPT (USA Std.) | 0.315 in. 8 mm | 6P | 5/8 in. |
| 75046-60-31 |  3 Way Normally Open Spring Return | 1/4 NPT (USA Std.) | 0.315 in. 8 mm | 6P | 5/8 in. |
| 75023-32-41 |  4 Way Spring Return | 1/8 NPT (USA Std.) | 0.236 in. 6 mm | 2S | 5/8 in. |
| 75047-60-41 | 4 Way Spring Return | 1/4 NPT (USA Std.) | 0.315 in. 8 mm | 7P | 5/8 in. |
| 75027-60-10 |  4 Way Plunger on Both Ends (Maintained) | 1/8 NPT (USA Std.) | 0.236 in. 6 mm | 10P | 5/8 in. |
| 75047-60-10 | 4 Way Plunger on Both Ends (Maintained) | 1/4 NPT (USA Std.) | 0.315 in. 8 mm | 7P | 5/8 in. |
| 76022-32-21 | 3 Way Normally Closed Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S | 5/8 in. |
| 76046-60-21 | 3 Way Normally Closed Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P | 5/8 in. |
| 76046-60-31 | 3 Way Normally Open Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P | 5/8 in. |
| 76023-32-41 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | 5/8 in. |
| 76047-60-41 | 4 Way Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 7P | 5/8 in. |
| 76027-60-10 | 4 Way Plunger on Both Ends (Maintained) | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 10P | 5/8 in. |
| 76047-60-10 | 4 Way Plunger on Both Ends (Maintained) | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 7P | 5/8 in. |
