Timing Using a Momentary Start SignalItem # item-1848

Pressing the pushbutton sends a signal to switch the air piloted valve on. The valve output is connected to the device to be controlled and to the timer control port. When the timer reaches it's set time it sends a signal back to the air pilot valve resetting it, turning off the output to the device. The timer resets.

Any on delay timer (consider length of time required and mounting preference).
Pushbutton 3 way (choice of color)- Cat. nos. 75022-62-21 (Red),-23 (Black) or -24 (Green).
Double air piloted valve 3 way- Cat. no. 75022-71-22 (1/8 Ports).

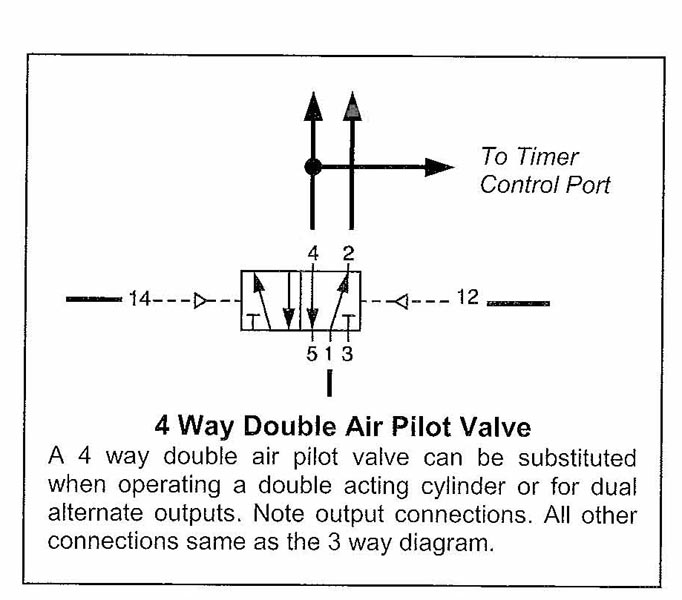

For larger sizes of double air piloted valves use a 4 way valve and plug port 2 for 3 way operation. Connect device and timer control to port 4 of 4 way valve. Use Cat. nos. 75047-81-42 for1/4 ports or 75067-81-42 for 1/2 ports.
