Directional Control Valves, (4 Way), Pneumatic Actuation (Spool Design, In Line Mounting)

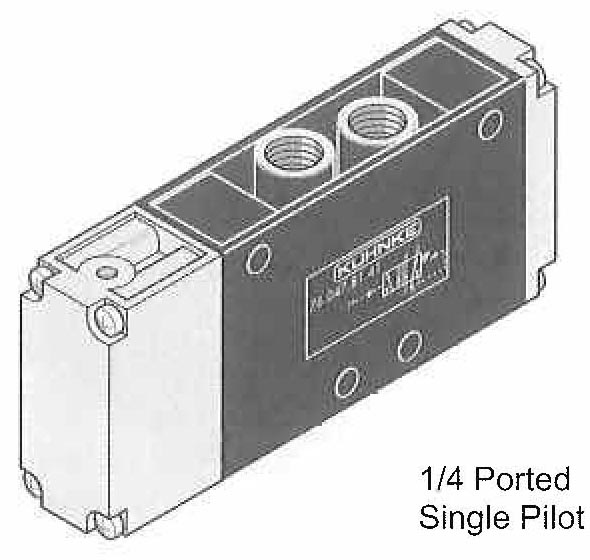

Spool valves rely on a stainless steel spool moving within a sleeve to direct flow to the ports of the valve. Spool designs are known for their long life capability. Available in single, double or with priority port actuators. The priority port design overrides the signal from the opposite pilot operator to insure return to home position. Pneumatically actuated spool valves are available in 1/8 and 1/4 port sizes and require a minimum of 35 PSI operating pressure. Valves can be mounted individually using through body holes or assembled on manifolds.

Pilot port size (for actuation): 1/8 for all size valves.
Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.
Mounting via 4 through body holes 3/16" Dia.
For valve specifications see appendix. See accessory section for manifolds if required. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.Body Mounting Hole
75023-71-41Single Air Pilot Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
8S3/16 in.
75043-81-41Single Air Pilot Spring Return1/4 NPT Ports (USA Std.)0.315 in.
8 mm
5S3/16 in.
75023-71-42Double Air Pilot With Detent1/8 NPT Ports (USA Std.)0.236 in.
6 mm
8S3/16 in.
75043-81-42Double Air Pilot With Detent1/4 NPT Ports (USA Std.)0.315 in.
8 mm
5S3/16 in.
75023-71-47Double Air Pilot With Priority Detent1/8 NPT Ports (USA Std.)0.236 in.
6 mm
8S3/16 in.
75043-81-47Double Air Pilot With Priority Detent1/4 NPT Ports (USA Std.)0.315 in.
8 mm
5S3/16 in.
76023-71-41Single Air Pilot Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
8S3/16 in.
76123-71-41Single Air Pilot Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mS3/16 in.
76043-81-41Single Air Pilot Spring Return1/4 Metric Ports (European Std.)0.315 in.
8 mm
5S3/16 in.
76023-71-42Double Air Pilot With Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
8S3/16 in.
76123-71-42Double Air Pilot With Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mS3/16 in.
76043-81-42Double Air Pilot With Detent1/4 Metric Ports (European Std.)0.315 in.
8 mm
5S3/16 in.
76023-71-47Double Air Pilot With Priority Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
8S3/16 in.
76123-71-47Double Air Pilot With Priority Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mS3/16 in.
76043-81-47Double Air Pilot With Priority Detent1/4 Metric Ports (European Std.)0.315 in.
8 mm
5S3/16 in.
