Directional Control Valves, (4 Way), Pneumatic Actuation (Poppet Design, In Line Mounting)

Pneumatically operated poppet valves are available in single, double or with priority port actuators. The priority port design overrides the signal from the opposite pilot operator to insure return to home position. Poppet valves rely on O rings and gaskets to seal passage ways within the valve and generally offer higher flow rates than other types of valves.

These valves are available in port sizes of 1/8, 1/4 and 1/2. Pilot ports are 1/8 for all size valves and require minimum of 35 PSI operating pressure. Single air pilot valves have an air supported spring return and require a pilot pressure equal to or greater than the air supply pressure at port 1. Valves can be mounted using through body holes or assembled on manifolds.

Pilot port size (for actuation): 1/8 for all size valves.

Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.

Mounting via 4 through body holes 3/16” Dia. (1/2” ported valves- 1/4” Dia.).

For valve specifications see appendix. See accessory section for manifolds if required. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.Body Mounting Hole
75027-71-41Single Air Pilot Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
10P3/16 in.
75047-81-41Single Air Pilot Spring Return1/4 NPT Ports (USA Std.)0.315 in.
8 mm
7P3/16 in.
75067-81-41Single Air Pilot Spring Return1/2 NPT Ports (USA Std.)0.59 in.
15 mm
12P1/4 in.
75027-71-42Double Air Pilot With Detent1/8 NPT Ports (USA Std.)0.236 in.
6 mm
10P3/16 in.
75047-81-42Double Air Pilot With Detent1/4 NPT Ports (USA Std.)0.315 in.
8 mm
7P3/16 in.
75067-81-42Double Air Pilot With Detent1/2 NPT Ports (USA Std.)0.59 in.
15 mm
12P1/4 in.
75027-71-47Double Air Pilot With Priority Detent1/8 NPT Ports (USA Std.)0.236 in.
6 mm
10P3/16 in.
75047-81-47Double Air Pilot With Priority Detent1/4 NPT Ports (USA Std.)0.315 in.
8 mm
7P3/16 in.
75067-81-47Double Air Pilot With Priority Detent1/2 NPT Ports (USA Std.)0.59 in.
15 mm
12P1/4 in.
76027-71-41Single Air Pilot Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
10P3/16 in.

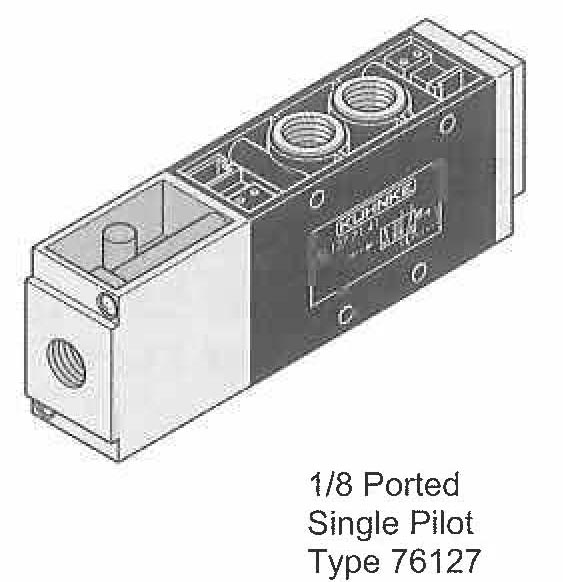

76127-71-41Single Air Pilot Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mP3/16 in.
76047-81-41Single Air Pilot Spring Return1/4 Metric Ports (European Std.)0.315 in.
8 mm
7P3/16 in.
76067-81-41Single Air Pilot Spring Return1/2 Metric Ports (European Std.)0.59 in.
15 mm
12P1/4 in.
76027-71-42Double Air Pilot With Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
10P3/16 in.
76127-71-42Double Air Pilot With Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mP3/16 in.
76047-81-42Double Air Pilot With Detent1/4 Metric Ports (European Std.)0.315 in.
8 mm
7P3/16 in.
76067-81-42Double Air Pilot With Detent1/2 Metric Ports (European Std.)0.59 in.
15 mm
12P1/4 in.
76027-71-47Double Air Pilot With Priority Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
10P3/16 in.
76127-71-47Double Air Pilot With Priority Detent1/8 Metric Ports (European Std.)0.236 in.
6 mm
1mP3/16 in.
76047-81-47Double Air Pilot With Priority Detent1/4 Metric Ports (European Std.)0.315 in.
8 mm
7P3/16 in.
76067-81-47Double Air Pilot With Priority Detent1/2 Metric Ports (European Std.)0.59 in.
15 mm
12P1/4 in.
