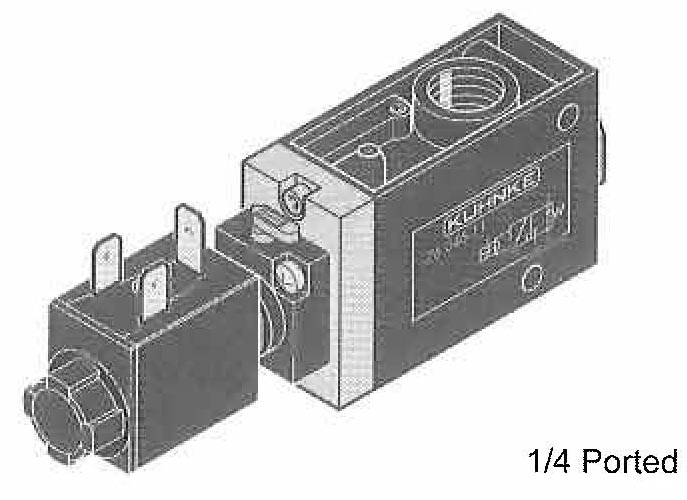

Three way poppet design valves are solenoid operated, air pilot assisted. Valves include a red manual override lever for easy testing of pneumatic circuits. Coils are encapsulated for long life. Available in standard versions, or with a port for external air supply used for switching pressures below 35 PSI.
Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures).
For 2-way operation plug exhaust port 3. Through body mounting holes are 3/16" for 1/8 and 1/4 ported valves, 1/4" for 1/2 ported valves.
For valve specifications see appendix. See accessory section for electrical connectors. For detail dimensions contact factory.
1-800-221-0714
3 Way Solenoid Valves
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. |
|---|---|---|---|---|
| 75026-01-00 |  Normally Closed Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 9P |
| 75046-01-00 | Normally Closed Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 6P |
| 75066-01-00 | Normally Closed Spring Return | 1/2 NPT Ports (USA Std.) | 0.59 in. 15 mm | 11P |
| 75026-11-00 |  Normally Open Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 9P |
| 75046-11-00 | Normally Open Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 6P |
| 75066-11-00 | Normally Open Spring Return | 1/2 NPT Ports (USA Std.) | 0.59 in. 15 mm | 11P |
| 75326-01-00 |  Normally Closed External Air Pilot Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 9P |
| 75346-01-00 | Normally Closed External Air Pilot Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 6P |
| 75366-01-00 | Normally Closed External Air Pilot Spring Return | 1/2 NPT Ports (USA Std.) | 0.59 in. 15 mm | 11P |
| 75326-11-00 |  Normally Open External Air Pilot Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 9P |
| 75346-11-00 | Normally Open External Air Pilot Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 6P |
| 75366-11-00 | Normally Open External Air Pilot Spring Return | 1/2 NPT Ports (USA Std.) | 0.59 in. 15 mm | 11P |
| 76026-01-00 | Normally Closed Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 9P |
| 76046-01-00 | Normally Closed Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P |
| 76066-01-00 | Normally Closed Spring Return | 1/2 Metric Ports (European Std.) | 0.59 in. 15 mm | 11P |
| 76026-11-00 | Normally Open Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 9P |
| 76046-11-00 | Normally Open Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P |
| 76066-11-00 | Normally Open Spring Return | 1/2 Metric Ports (European Std.) | 0.59 in. 15 mm | 11P |
| 76326-01-00 | Normally Closed External Air Pilot Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 9P |
| 76346-01-00 | Normally Closed External Air Pilot Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P |
| 76366-01-00 | Normally Closed External Air Pilot Spring Return | 1/2 Metric Ports (European Std.) | 0.59 in. 15 mm | 11P |
| 76326-11-00 | Normally Open External Air Pilot Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 9P |
| 76346-11-00 | Normally Open External Air Pilot Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P |
| 76366-11-00 | Normally Open External Air Pilot Spring Return | 1/2 Metric Ports (European Std.) | 0.59 in. 15 mm | 11P |
