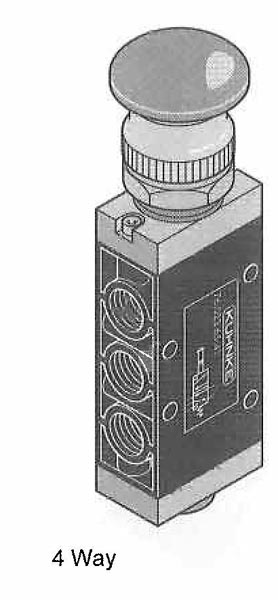

Mushroom Head Pushbutton, Air Pilot Assisted, 1/8 Ports

Mushroom Heads provide easy operation of valve. An internal air pilot assist using the supply air. reduces the force necessary to operate valve to 14 ounces.

Operating pressure range is 35 to 145 PSI. Minimum operating pressure is 35 PSI. Actuation force at 90 PSI. is approx 14 ozs.
Panel mounting hole is 7/8 inch (22 mm) diameter. Above panel dimensions are 1.375" Dia. x 1" H. (Mushroom) or 0.625" H. (Shroud Head).
Behind panel dimensions of 3 way valve - 3.75" D x 1.375" H x 0.75" W; 4 way valve - 4.25" D x 1.375" H x 0.75" W.
Allow space for fittings and tubing.
Valve through body mounting holes are 3/16" diameter.
For valve specifications see appendix. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.Color
75022-65-213 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SRed
75022-65-233 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SBlack
75022-65-243 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SGreen
75023-65-414 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SRed
75023-65-434 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SBlack
75023-65-444 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm		1SGreen
76022-65-213 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SRed
76022-65-233 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SBlack
76022-65-243 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SGreen
76023-65-414 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SRed
76023-65-434 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SBlack
76023-65-444 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm		2SGreen
