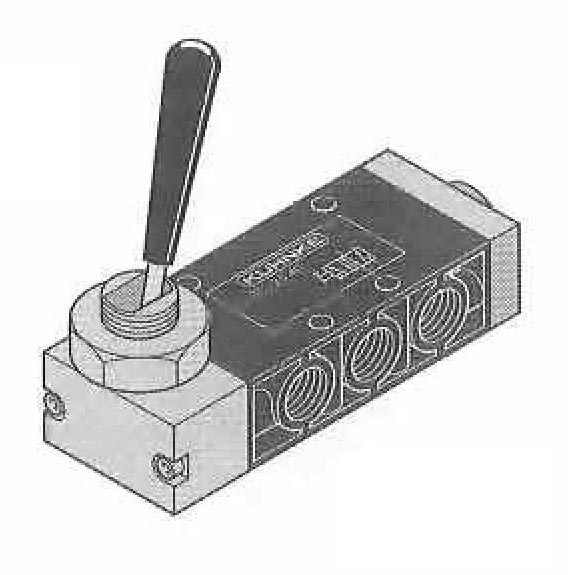

Lever Operator, 2 Position

Lever valves can be used to manually switch air supplies on equipment or operate cylinders and other devices. Valves can be panel mounted or fastened to a surface via body mounting holes. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate. Valves are available in spring return, pneumatic return and maintained position versions.

Operating pressure range is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valves, reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4 ported valves, 7/8 inch. Through body mounting holes are 3/16" dia.
Typical dimensions of 4 way 1/8 ported valves are 3.75" L x 1.375" W x 0.75" D. For 1/4 ported valves: 4.75" L x 2" W x 1" D. For 3 way valves subtract 0.75" from L dimension. For pneumatic return valves add 1" to L dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.
75022-25-003 Way Maintained Position1/8 NPT Ports (USA Std.)0.236 in.
6 mm
1S
75042-25-003 Way Maintained Position1/4 NPT Ports (USA Std.)0.315 in.
8 mm
3S
75022-25-213 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
1S
75042-25-213 Way Spring Return1/4 NPT Ports (USA Std.)0.315 in.
8 mm
3S
75022-25-223 Way Pneumatic Reset1/8 NPT Ports (USA Std.)0.236 in.
6 mm
1S
75042-25-223 Way Pneumatic Reset1/4 NPT Ports (USA Std.)0.315 in.
8 mm
3S
75023-25-404 Way Maintained Position1/8 NPT Ports (USA Std.)0.236 in.
6 mm
2S
75043-25-404 Way Maintained Position1/4 NPT Ports (USA Std.)0.315 in.
8 mm
4S
75023-25-414 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
2S
75043-25-414 Way Spring Return1/4 NPT Ports (USA Std.)0.315 in.
8 mm
4S
75023-25-424 Way Pneumatic Reset1/8 NPT Ports (USA Std.)0.236 in.
6 mm
2S
75043-25-424 Way Pneumatic Reset1/4 NPT Ports (USA Std.)0.315 in.
8 mm
4S
76022-25-003 Way Maintained Position1/8 Metric Ports (European Std.)0.236 in.
6 mm
1S
76042-25-003 Way Maintained Position1/4 Metric Ports (European Std.)0.315 in.
8 mm
3S
76022-25-213 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
1S
76042-25-213 Way Spring Return1/4 Metric Ports (European Std.)0.315 in.
8 mm
3S
76022-25-223 Way Pneumatic Reset1/8 Metric Ports (European Std.)0.236 in.
6 mm
1S
76042-25-223 Way Pneumatic Reset1/4 Metric Ports (European Std.)0.315 in.
8 mm
3S
76023-25-404 Way Maintained Position1/8 Metric Ports (European Std.)0.236 in.
6 mm
2S
76043-25-404 Way Maintained Position1/4 Metric Ports (European Std.)0.315 in.
8 mm
4S
76023-25-414 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
2S
76043-25-414 Way Spring Return1/4 Metric Ports (European Std.)0.315 in.
8 mm
4S
76023-25-424 Way Pneumatic Reset1/8 Metric Ports (European Std.)0.236 in.
6 mm
2S
76043-25-424 Way Pneumatic Reset1/4 Metric Ports (European Std.)0.315 in.
8 mm
4S
