Manifold Mounted Miniature Pressure RegulatorItem # 50806-00-50-00
The manifold mounted regulator was designed for use on custom manifolds. The miniature regulator is available in both relieving and non-relieving versions in a molded housing.
The unit is screw driver adjustable and is equipped with a locking ring to prevent tampering after the setting is made.
Several adjustment ranges are available for close regulation in most applications. Special designs are available.
The unit is screw driver adjustable and is equipped with a locking ring to prevent tampering after the setting is made.
Several adjustment ranges are available for close regulation in most applications. Special designs are available.
Item # | 50806-00-50-00 |
Diagrams | Relieving |
Secondary Pressure Regulation Range | 0 - 75 psi (5 Bar) |
Operating Pressure Range | 0 to 145 psi |
Regulator Range | 0 to 75 psi |
Porting | Manifold Mounted |
Flow Rate | Dependent on regulator model. |
Media | Filtered Air |
Types | Relieving Single stage, diaphragm/spring construction |
Response Time | Dependent on secondary volume. Response average: 45ms at 20% loss of secondary air pressure; 100ms at 50% loss of secondary air pressure. |
Adjustment | Screw driver Adj. Equipped with locking nut to prevent tampering after setting is made |
Materials | Buna N Seals Stainless Interior Parts Brass Interior Parts Molded POM Housing |
Operating Ambient | 0 to +60 ºC 32 to 140 ºF |
Height | 1 9/16 in. |
Width | 1 3/16 in² |
Weight | 2 oz. |

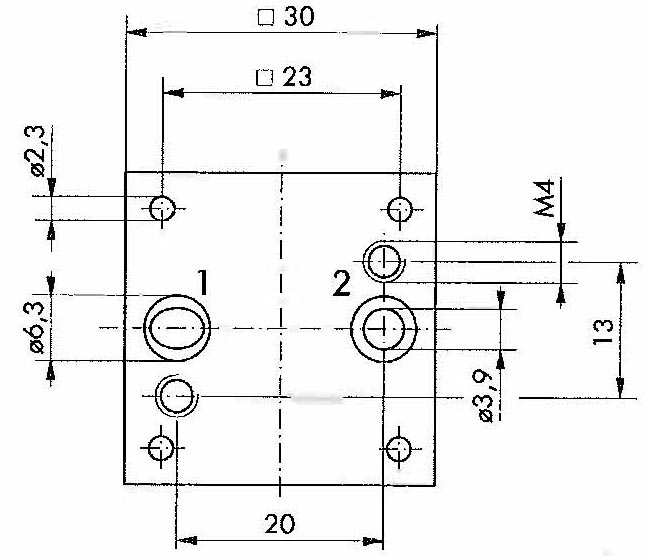

Drilling Plan | Regulator Bottom View (Dimensions in millimeters) |
Relieving type regulators allow excessive pressure on the secondary side of the regulator to bleed off to the atmosphere, helping maintain steady pressure. Non-relieving types are used where pressure build up is not a concern as in air motors, or air gun applications etc.

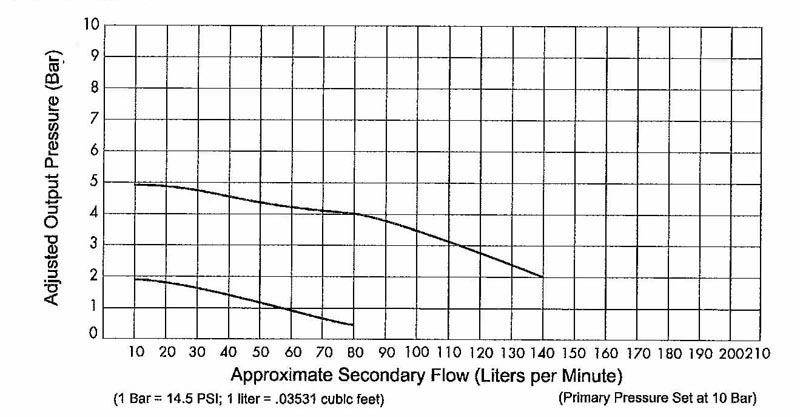

- Flow Chart
