Shroud Head prevents accidental operation. Button is (lush with shroud surface and the diameter is 1 1/8 inches. Operating force 14 ounces.
Operating pressure range is 35 to 145 PSI. Minimum operating pressure is 35 PSI. Actuation force at 90 PSI. is approx 14 ozs.
Panel mounting hole is 7/8 inch (22 mm) diameter. Above panel dimensions are 1.375" Dia. x 1" H. (Mushroom) or 0.625" H. (Shroud Head).

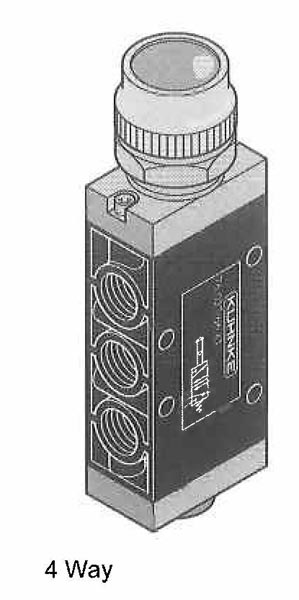

Behind panel dimensions of 3 way valve - 3.75" D x 1.375" H x 0.75" W; 4 way valve - 4.25" D x 1.375" H x 0.75" W.
Allow space for fittings and tubing.
Valve through body mounting holes are 3/16" diameter.
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714
Shrouded Head Pushbutton, Air Pilot Assisted, 1/8 Ports
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. | Color | Panel Mounting Hole |
|---|---|---|---|---|---|---|
| 75022-66-21 |  3 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Red | 7/8 in. 22 mm |
| 75022-66-23 | 3 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Black | 7/8 in. 22 mm |
| 75022-36-24 | 3 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Green | 7/8 in. 22 mm |
| 75023-66-41 |  4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Red | 7/8 in. 22 mm |
| 75023-66-43 | 4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Black | 7/8 in. 22 mm |
| 75023-66-44 | 4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S | Green | 7/8 in. 22 mm |
| 76022-66-21 | 3 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Red | 7/8 in. 22 mm |
| 76022-66-23 | 3 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Black | 7/8 in. 22 mm |
| 76022-66-24 | 3 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Green | 7/8 in. 22 mm |
| 76023-66-41 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Red | 7/8 in. 22 mm |
| 76023-66-43 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Black | 7/8 in. 22 mm |
| 76023-66-44 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S | Green | 7/8 in. 22 mm |
