Continuous Cycling Timer Circuit

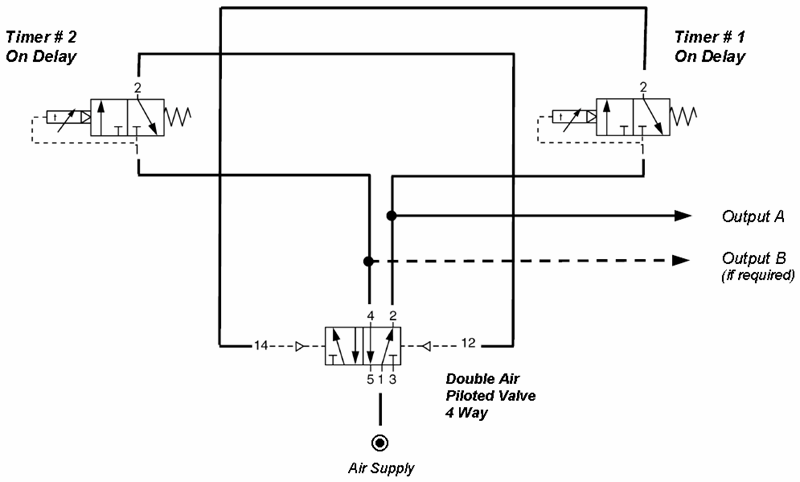

Continuous cycling is accomplished by the use of 2 timers operating a double air piloted valve. Off and on times are dependent on the type and set time of timers used. The size of the air piloted valve determines the air volume output. The position of the air piloted valve determines the start up of the timing sequence. If the timing sequence must be restarted in a specific order, a reset circuit must be added at port 12 of the air piloted valve to move it to the start position prior to resuming operation.
