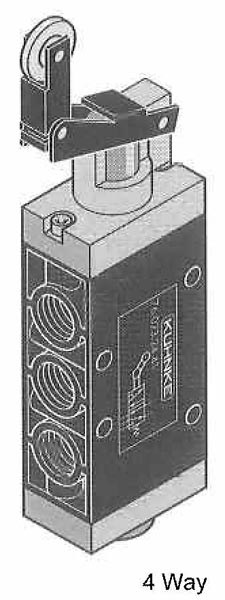

One Way Roller Lever Operated, Body Mount

One way roller lever operates valve only in one direction. Can be used as safety valve for limiting travel on machinery. Roller arm travel is 1/2" (12mm). Actuating force is 4.5 Lbs.

Operating pressure range 0-145 PSI. Actuation force at 90 PSI, is approx. 4.5 Lbs.
For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.
Valve body dimensions are 2.5" L (3 way), 3.15" L (4 way) x 1.375" W x .75" H. Roller Lever extends 2" beyond body and travel is .5" in actuate direction and non actuate direction. Through body holes are 3/16" diameter.

For valve specifications see appendix. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.Body Holes
75022-24-213 Way Normally Closed Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
1S3/16 in.
75023-24-414 Way Spring Return1/8 NPT Ports (USA Std.)0.236 in.
6 mm
2S3/16 in.
76022-24-213 Way Normally Closed Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
1S3/16 in.
76023-24-414 Way Spring Return1/8 Metric Ports (European Std.)0.236 in.
6 mm
2S3/16 in.
