One way roller lever operates valve only in one direction. Actuation force is 14 ounces and roller lever travel is approx. 5/32 inch (4mm).
Operating pressure range 35-145 PSI. Minimum pressure 35 PSI. Actuation force at 90 PSI, is approx. 14 ounces.
Approximate valve body dimensions for 1/8 ported valves are 2.75" L (3 way), 3.5" L (4 way) x 1.375" H x .75" W. Approximate valve body dimensions for 1/4 ported valves are 4.75" L x 2" H x 1" W. Roller arm extends 1.81" beyond body and travel is .156 in actuate direction and .5" in non actuate direction. Through body mounting holes 3/16".
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714

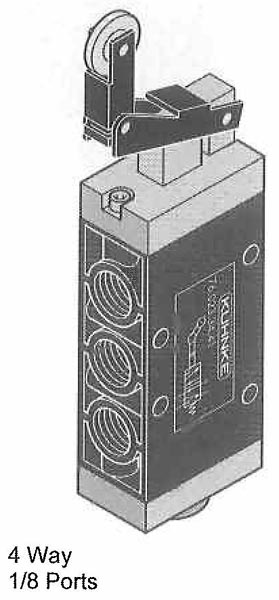

One Way Roller Lever Operated, Air Pilot Assist, Body Mount
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. |
|---|---|---|---|---|
| 75022-34-21 |  3 Way Normally Closed Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S |
| 75046-74-21 | 3 Way Normally Closed Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 6P |
| 75023-34-41 |  4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S |
| 75047-74-41 | 4 Way Spring Return | 1/4 NPT Ports (USA Std.) | 0.315 in. 8 mm | 7P |
| 76022-34-21 | 3 Way Normally Closed Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S |
| 76046-74-21 | 3 Way Normally Closed Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 6P |
| 76023-34-41 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S |
| 76047-74-41 | 4 Way Spring Return | 1/4 Metric Ports (European Std.) | 0.315 in. 8 mm | 7P |
