Depressing plunger operates valve. Used to detect material position or as an end of travel valve. Plunger travel approx. 3/16 inch (5mm). Actuating force is 7.9 Lbs.
Operating pressure range 0-145 PS1 Actuation force at 90 PSI. is approx. 7.9 Lbs.
For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.
Typical valve body dimensions are 2.5" L (3 way), 3.15" L (4 way) x 1.375" H x .75" W. Mounting hole 5/8" diameter.
Through body mounting holes 3/16" dia.
Plunger diameter is 0.25" and extends 0.875" from valve body. Plunger travel is 0.1875" ± 0.04"
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714

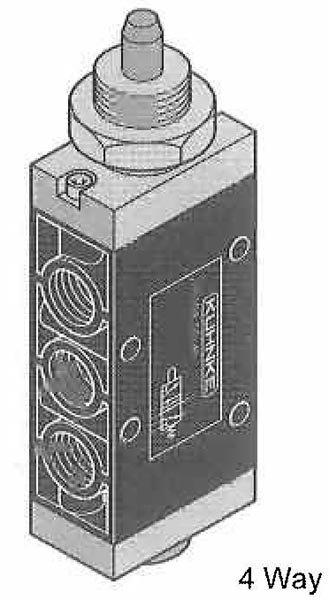

Plunger Operated, Nose Mount
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. |
|---|---|---|---|---|
| 75022-22-21 |  3 Way Normally Closed Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S |
| 75023-22-41 |  4 Way Spring Return | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S |
| 76022-22-21 | 3 Way Normally Closed Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S |
| 76023-22-41 | 4 Way Spring Return | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S |
