Directional Control Valves (4 Way), Solenoid Operated (Spool Design, Flat Mounting)

Solenoid operated, air piloted spool valves are available in single, double, priority and external air pilot versions. Valve designs use a stainless steel spool moving within a sleeve to direct airflow to the ports of the valve. Spool valves are known for their long life capability.
Valves are available in 1/8 and 1/4 port sizes and have an operating range of 35 to 145 PSI.
Valves include a red manual override and encapsulated coils and can be individually mounted or assembled on manifolds.

Operating pressure range is 35 to 145 PSI.
Through body mounting holes are 3/16".
For valve specifications see appendix. See accessory section for electrical connectors. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.
75023-94-00Single Solenoid Spring Return air assisted1/8 NPT Port (USA Std.)0.236 in.
6 mm
8S

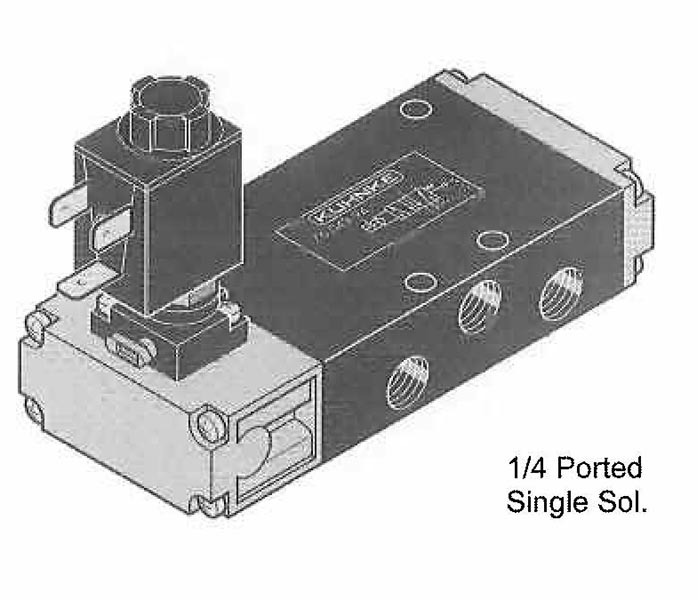

75043-94-00Single Solenoid Spring Return air assisted1/4 NPT Port (USA Std.)0.315 in.
8 mm
5S
75023-95-00Double Solenoid With Detent1/8 NPT Port (USA Std.)0.236 in.
6 mm
8S
75043-95-00Double Solenoid With Detent1/4 NPT Port (USA Std.)0.315 in.
8 mm
5S
76023-94-00Single Solenoid Spring Return air assisted1/8 Metric Port (European Std.)0.236 in.
6 mm
8S
76043-94-00Single Solenoid Spring Return air assisted1/4 Metric Port (European Std.)0.315 in.
8 mm
5S
76023-95-00Double Solenoid With Detent1/8 Metric Port (European Std.)0.236 in.
6 mm
8S
76043-95-00Double Solenoid With Detent1/4 Metric Port (European Std.)0.315 in.
8 mm
5S
