Directional Control Valves (4 Way), Solenoid Operated (Poppet Design, Flat Mounting)

Solenoid operated, air piloted poppet valves are available in single, double, priority and external air pilot supply versions. Priority version overrides signal from opposite solenoid to assure return to valve home position. Valves with external air pilot connections are used when switching pressures below 35 PSI. Poppet valves usually provide higher flow rates than other types of valves because of flow path design. Valves include a red manual override for easy testing. Encapsulated coils provide splash proof protection when used with plug connectors. Valves can be mounted individually using through body holes or assembled on manifolds.

Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures).
Through body mounting holes are 3/16" for 1/8 and 1/4 ported valves, 1/4" for 1/2 ported valves.
For valve specifications see appendix. See accessory section for electrical connectors. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.
75027-94-00Single Solenoid Spring Return air assisted1/8 NPT Port (USA Std.)0.236 in.
6 mm
10P
75047-94-00Single Solenoid Spring Return air assisted1/4 NPT Port (USA Std.)0.315 in.
8 mm
7P
75067-94-00Single Solenoid Spring Return air assisted1/2 NPT Port (USA Std.)0.59 in.
15 mm
12P
75027-95-00Double Solenoid With Detent1/8 NPT Port (USA Std.)0.236 in.
6 mm
10P
75047-95-00Double Solenoid With Detent1/4 NPT Port (USA Std.)0.315 in.
8 mm
7P

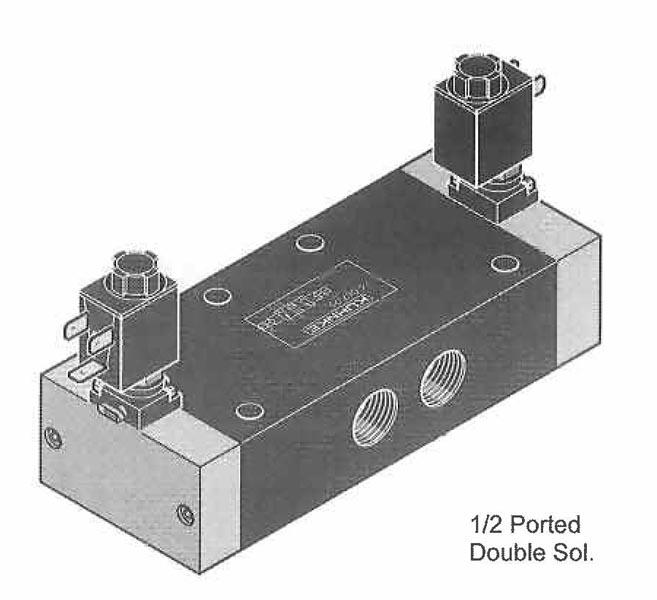

75067-95-00Double Solenoid With Detent1/2 NPT Port (USA Std.)0.59 in.
15 mm
12P
75367-95-00Double Solenoid External Air Pilot Detent1/2 NPT Port (USA Std.)0.59 in.
15 mm
12P
76027-94-00Single Solenoid Spring Return air assisted1/8 Metric Port (European Std.)0.236 in.
6 mm
10P
76047-94-00Single Solenoid Spring Return air assisted1/4 Metric Port (European Std.)0.315 in.
8 mm
7P
76067-94-00Single Solenoid Spring Return air assisted1/2 Metric Port (European Std.)0.59 in.
15 mm
12P
76027-95-00Double Solenoid With Detent1/8 Metric Port (European Std.)0.236 in.
6 mm
10P
76047-95-00Double Solenoid With Detent1/4 Metric Port (European Std.)0.315 in.
8 mm
7P
76067-95-00Double Solenoid With Detent1/2 Metric Port (European Std.)0.59 in.
15 mm
12P
76367-95-00Double Solenoid External Air Pilot Detent1/2 Metric Port (European Std.)0.59 in.
15 mm
12P
