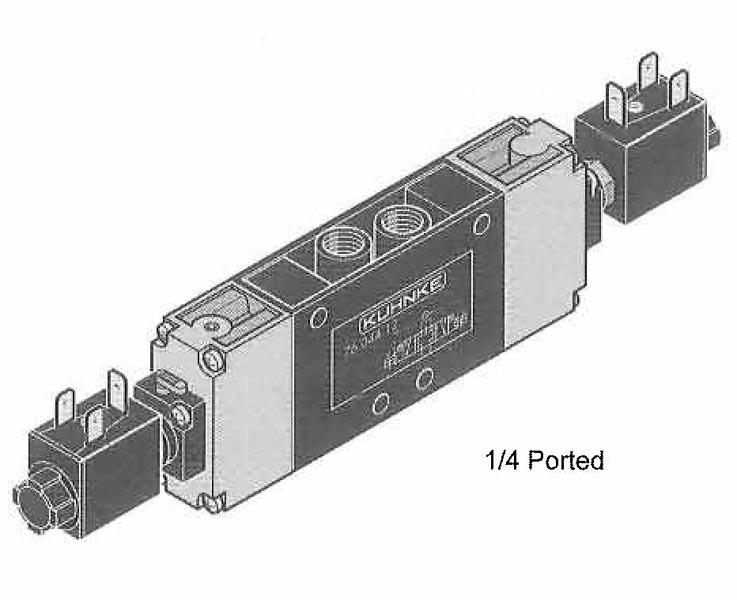

3 Position Valves (4 Way), Solenoid Operated (Spool Design, In Line Mounting)

Three position valves can be used to position cylinder piston rods or switch air supplies to alternate devices. In line spool valves are available in 2 versions; with all ports open or all ports closed in the center (off) position. Springs return the valve to the center position when the coil power is switched off. Valves can be individually mounted using through body holes or assembled on manifolds.

Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures).
Through body mounting holes are 3/16".
For valve specifications see appendix. See accessory section for connectors and manifolds. For detail dimensions contact factory.
Compare / Request
up to 5 items
Item #DescriptionPort TypeOrificeBody No.
75024-02-00Double Solenoid All ports open in center position1/8 NPT Port (USA Std.)0.236 in.
6 mm		8S
75044-02-00Double Solenoid All ports open in center position1/4 NPT Port (USA Std.)0.315 in.
8 mm		5S
75024-12-00Double Solenoid All ports closed in center position.1/8 NPT Port (USA Std.)0.236 in.
6 mm		8S
75044-12-00Double Solenoid All ports closed in center position.1/4 NPT Port (USA Std.)0.315 in.
8 mm		5S
75344-02-00Double Solenoid External Air Pilot All ports open in center position.1/8 NPT Port (USA Std.)0.236 in.
6 mm		8S
76024-02-00Double Solenoid All ports open in center position1/8 Metric Port (European Std.)0.236 in.
6 mm		8S
76124-02-00Double Solenoid All ports open in center position1/8 Metric Port (European Std.)0.236 in.
6 mm		1mS
76044-02-00Double Solenoid All ports open in center position1/4 Metric Port (European Std.)0.315 in.
8 mm		5S
76024-12-00Double Solenoid All ports closed in center position.1/8 Metric Port (European Std.)0.236 in.
6 mm		8S
76124-12-00Double Solenoid All ports closed in center position.1/8 Metric Port (European Std.)0.236 in.
6 mm		1mS
76044-12-00Double Solenoid All ports closed in center position.1/4 Metric Port (European Std.)0.315 in.
8 mm		5S
76344-02-00Double Solenoid External Air Pilot All ports open in center position.1/8 Metric Port (European Std.)0.236 in.
6 mm		8S
76524-02-00Double Solenoid External Air Pilot All ports open in center position.1/8 Metric Port (European Std.)0.236 in.
6 mm		1mS
