Toggle Lever valves can be used to manually switch air supplies on equipment. Valves are designed for panel mounting. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate.
Operating pressure range is 0 to 145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole is 5/8 inch diameter, maximum panel thickness 1/8 inch. Above panel dimensions are 8125" Dia. x 2" H.
Behind panel dimensions of 3 way valve are 2.875" D x 1.375" H x 0.75" W; 4 way valve- 4.625" D x 1.375" H x 0.75" W.
Valve through body mounting holes are 3/16" diameter. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
1-800-221-0714

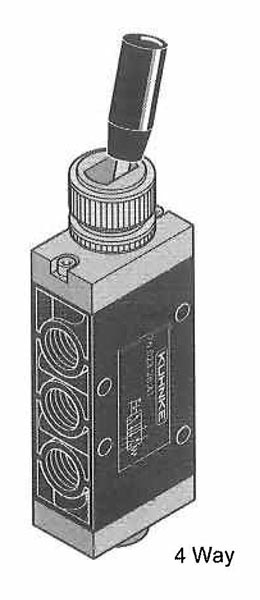

Toggle Lever, Panel Mounted, 2 Position
Compare / Request
up to 5 items
up to 5 items
| Item # | Description | Port Type | Orifice | Body No. |
|---|---|---|---|---|
| 75022-26-21 |  3 Way Maintained Position | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 1S |
| 75023-26-41 |  4 Way Maintained Position | 1/8 NPT Ports (USA Std.) | 0.236 in. 6 mm | 2S |
| 76022-26-21 | 3 Way Maintained Position | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 1S |
| 76023-26-41 | 4 Way Maintained Position | 1/8 Metric Ports (European Std.) | 0.236 in. 6 mm | 2S |
