Lever Operator, 4 Way, 3 Position : Ellis/Kuhnke Controls

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16" dia.
Typical dimensions of spring return 1/8 ported valves are 4" L x 1.375" W x .75" D. For 1/4 ported valves: 5.375" L x 2" W x 1" D. Above panel dimensions including handle for 1/8-ported valves - 2.5". 1/4-ported valves -3.375". Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.

Item #	Description	Port Type	Orifice	Body No.

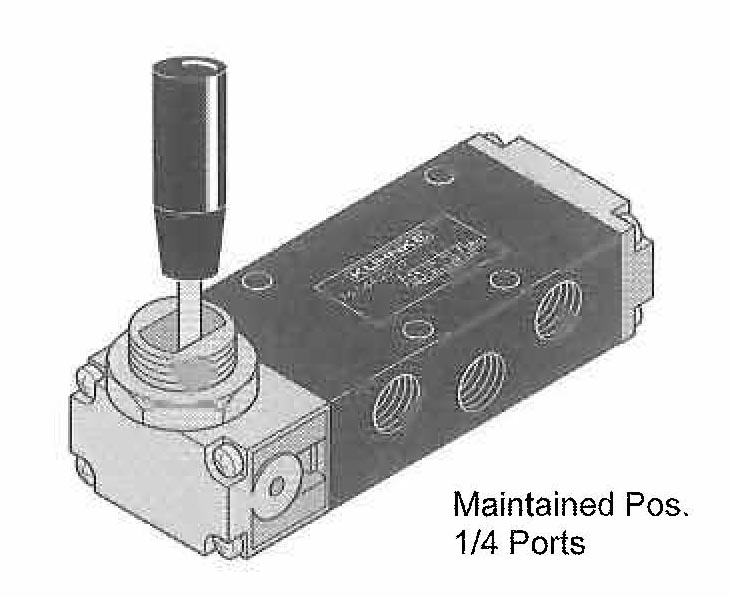

75024-25-28	Spring Return to Center All ports open in center position.	1/8 NPT Ports (USA Std.)	0.236 in. 6 mm	2S
75044-25-28	Spring Return to Center All ports open in center position.	1/4 NPT Ports (USA Std.)	0.315 in. 6 mm	4S
75024-25-29	Maintained Position All ports open in center position.	1/8 NPT Ports (USA Std.)	0.236 in. 6 mm	2S
75044-25-29	Maintained Position All ports open in center position.	1/4 NPT Ports (USA Std.)	0.315 in. 6 mm	4S
75024-25-38	Spring Return to Center All ports closed in center position.	1/8 NPT Ports (USA Std.)	0.236 in. 6 mm	2S
75044-25-38	Spring Return to Center All ports closed in center position.	1/4 NPT Ports (USA Std.)	0.315 in. 6 mm	4S
75024-25-39	Maintained Position All ports closed in center position.	1/8 NPT Ports (USA Std.)	0.236 in. 6 mm	2S
75044-25-39	Maintained Position All ports closed in center position.	1/4 NPT Ports (USA Std.)	0.315 in. 6 mm	4S
76024-25-28	Spring Return to Center All ports open in center position.	1/8 Metric Ports (European Std.)	0.236 in. 6 mm	2S
76044-25-28	Spring Return to Center All ports open in center position.	1/4 Metric Ports (European Std.)	0.315 in. 6 mm	4S
76024-25-29	Maintained Position All ports open in center position.	1/8 Metric Ports (European Std.)	0.236 in. 6 mm	2S
76044-25-29	Maintained Position All ports open in center position.	1/4 Metric Ports (European Std.)	0.315 in. 6 mm	4S
76024-25-38	Spring Return to Center All ports closed in center position.	1/8 Metric Ports (European Std.)	0.236 in. 6 mm	2S
76044-25-38	Spring Return to Center All ports closed in center position.	1/4 Metric Ports (European Std.)	0.315 in. 6 mm	4S
76024-25-39	Maintained Position All ports closed in center position.	1/8 Metric Ports (European Std.)	0.236 in. 6 mm	2S
76044-25-39	Maintained Position All ports closed in center position.	1/4 Metric Ports (European Std.)	0.315 in. 6 mm	4S
