Sub - Miniature Pressure RegulatorItem # 50880-00-20-00

The sub-miniature Series 50 regulator provides regulation of air pressure from 0 to 115 PSI. Available in both relieving and non-relieving versions, the unit's size and shape makes it ideally suited for mounting in dental, medical and laboratory equipment where close regulation and fine adjustments are necessary.

The regulator is supplied with a panel nut for mounting in a 1/2 inch diameter hole. It can be screw driver adjusted, and set with a locking nut, or with the use of a control knob can be continuously adjusted. Ports (2) have 10-32 (M5) threads and are 180° apart on the side of the regulator body. The housing is nickel plated brass.

Several adjustment ranges are available for close regulation in most applications. Special designs are available.
Item #50880-00-20-00
DiagramsRelieving
Secondary Pressure Regulation Range0 - 30 psi (2 Bar)
Operating Pressure Range0 to 145 psi
Regulator Range0 to 115 psi
Porting10-32 (M5)
Flow RateDependent on regulator model.
MediaAll neutral liquid and gaseous media. Consult factory before use on liquids.
TypesRelieving Single stage, diaphragm/spring construction
Response TimeDependent on secondary volume.
Response average: 75 ms at 20% loss of secondary air pressure; 1 sec at 50% loss of secondary air pressure.
AdjustmentScrew driver (or knob accessory)
Equipped with locking nut to prevent tampering after setting is made
MaterialsBuna N Seals
Brass Housing (Nickel Plated)
Stainless Interior Parts
Brass Interior Parts
Operating Ambient-10 to +60 C
-14 to 140 F
Height1 11/16 in.
Width5/8 in.
Weight2 oz.
Drilling PlanMounts in 1/2" dia. hole.
Equipped with mounting nut.
Behind panel depth - 1 1/8".

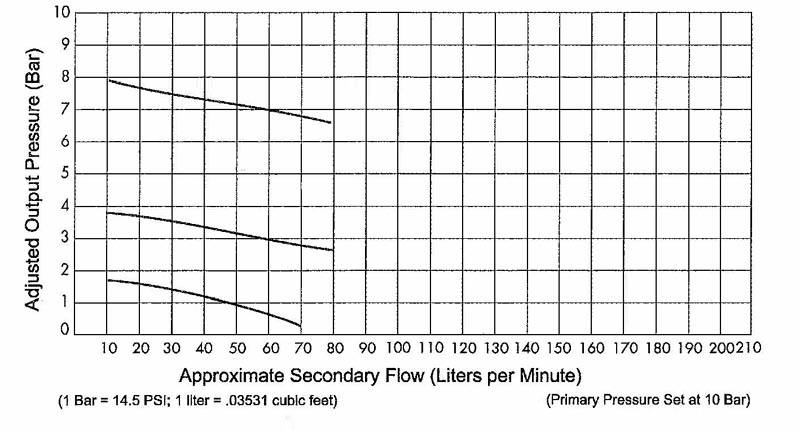

  • Flow Chart
    Flow Chart
